RTP-type transfer systems, MultiWay System®, Tubing

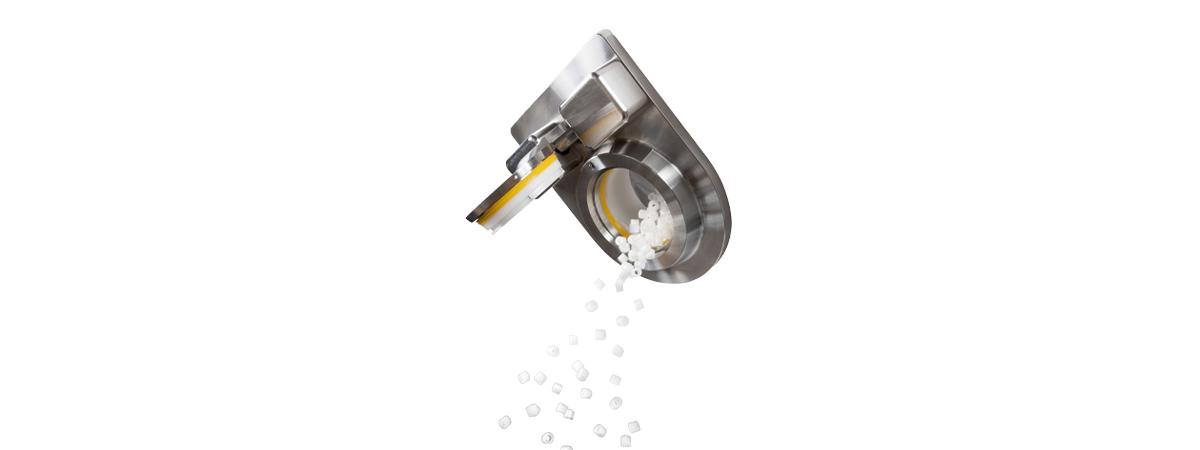

Principle

– System guaranteeing the aseptic transfer or the completely safe evacuation of toxic and infection-risk waste products and materials from one sterile or controlled environment to another or to the incineration system maintaining seamless containment and preventing any risk of contamination.
– Connection system with secure locking mechanism preventing the transfer door from being opened without the door connected to an appropriate external connection system, accessory or consumable
– Optimal safety, contamination prevention and maintaining containment: no contact between personnel and the products handled
– Easy to use and reduced handling to ensure optimal productivity

Characteristics

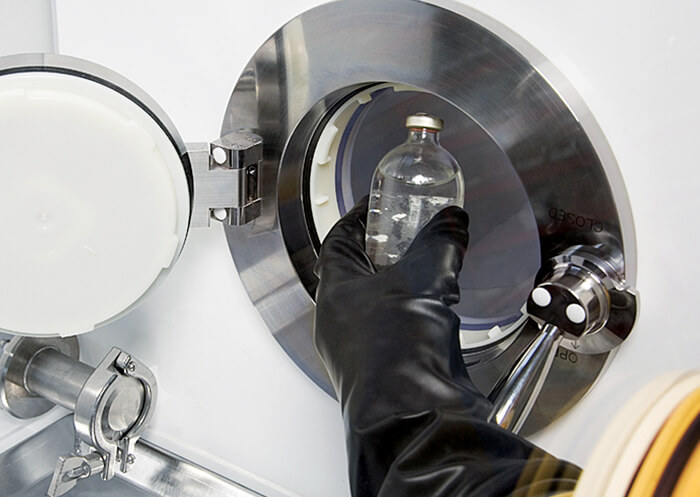

– Range of PTS® Transfer Doors and a range of connection systems, accessories and single-use consumables
– Door materials: 316L stainless steel, POM and PVC
– Seal material: silicone
– Opening/closing system: manual or automatic
– Leak tightness: as per ISO standard 10648-2
– Designed to fit isolators, partitions, hoods, safety cabinets, etc.

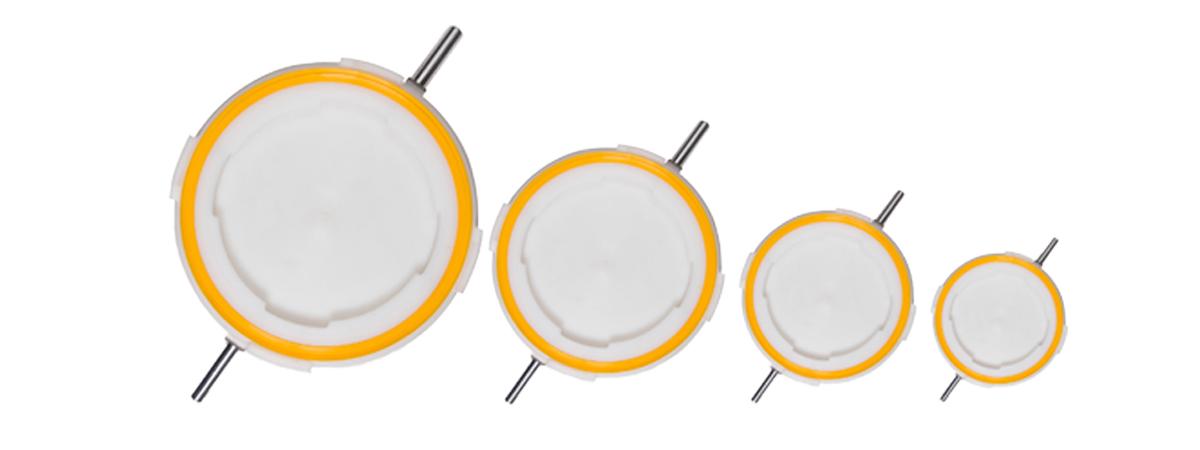

– Compatible with the JCE BIOTECHNOLOGY range of connection systems, accessories and single-use consumables and all RTP or DPTE®-type systems of similar diameters

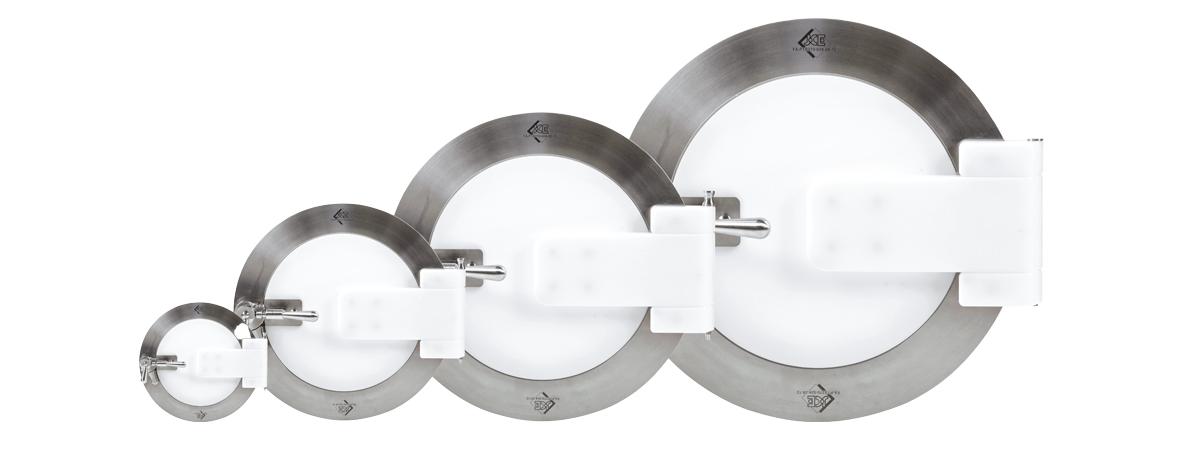

Available models

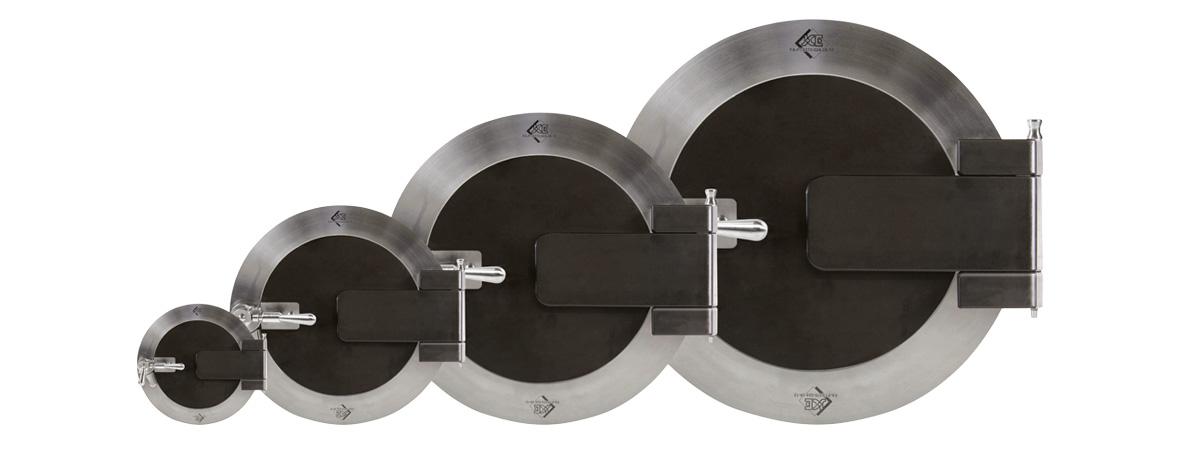

– Pass-through diameter 105 mm: Door Ref. PTS A 105®
– Pass-through diameter 190 mm: Door Ref. PTS A 190®
– Pass-through diameter 270 mm: Door Ref. PTS A 270®
– Pass-through diameter 350 mm: Door Ref. PTS A 350®

Principle

– System guaranteeing the aseptic transfer or the completely safe evacuation of toxic and infection-risk waste products and materials from one sterile or controlled environment to another or to the incineration system maintaining seamless containment and preventing any risk of contamination.
– Patented connection system with secure locking mechanism preventing the transfer door from being opened without the door connected to an appropriate external connection system, accessory or consumable.
– Optimal safety, contamination prevention and maintaining containment: no contact between personnel and the products handled.
– Easy to use and reduced handling to ensure optimal productivity.

Characteristics

– Range of MWS® Transfer Doors and a range of connection systems, accessories and single-use consumables.
– Door material: 316L stainless steel, PVC
– Seal material: silicone
– Opening/closing system: manual or automatic
– Leak tightness: as per ISO standard 10648-2
– Designed to fit isolators, partitions, hoods, safety cabinets, etc.

Available models

– Pass-through diameter 50 mm: Door Ref. MWS A 50®
– Pass-through diameter 150 mm: Door Ref. MWS A 150®

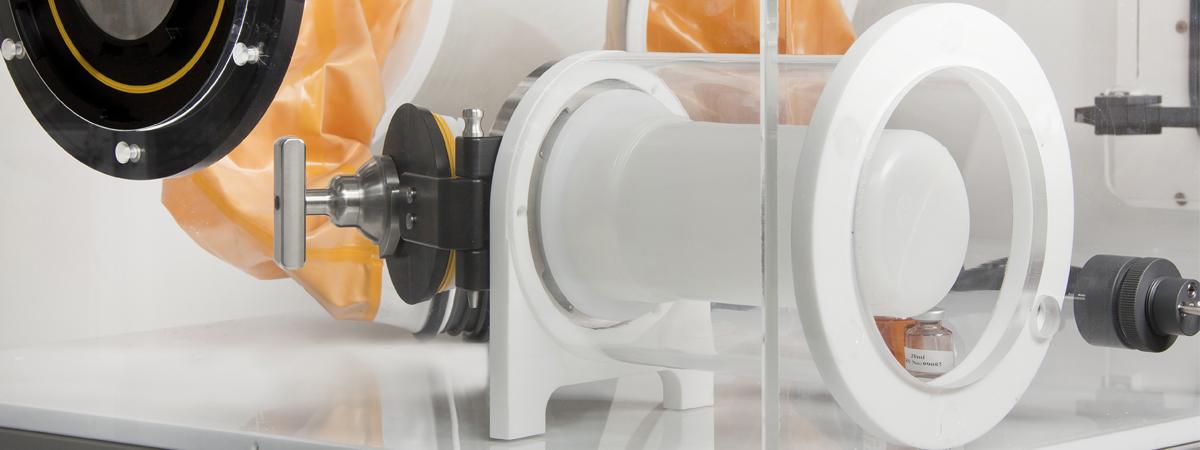

Principle

– System guaranteeing the secure transfer of cytotoxic residue products while preserving sterility.

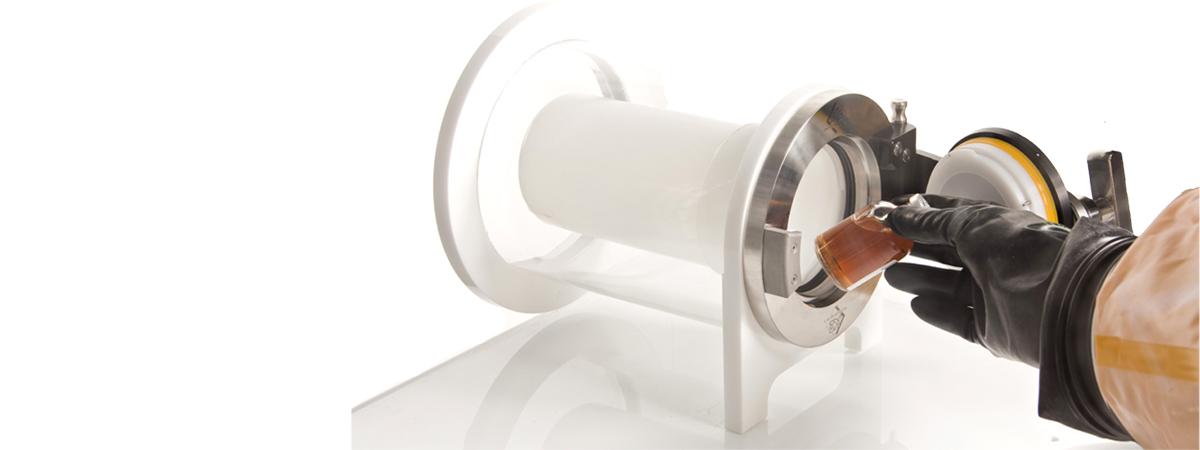

– Placing of residue products in a pre-sterilised leak tight container via a transfer door followed by the disconnection of this container and its placement in a refrigerator at controlled temperature while preserving the integrity of the products and ensuring the protection of personnel.

Door characteristics

– PTS A 105® Transfer Door
– Located on the isolator’s side face, rear face or work surface depending on the model
– Secure locking preventing the door from being opened without the connection of an external accessory
– Material: 316L stainless steel and PVC
– Pass-through diameter 100 mm
– Silicone seal
– Leak tightness: Class 1 as per ISO standard 10648-2

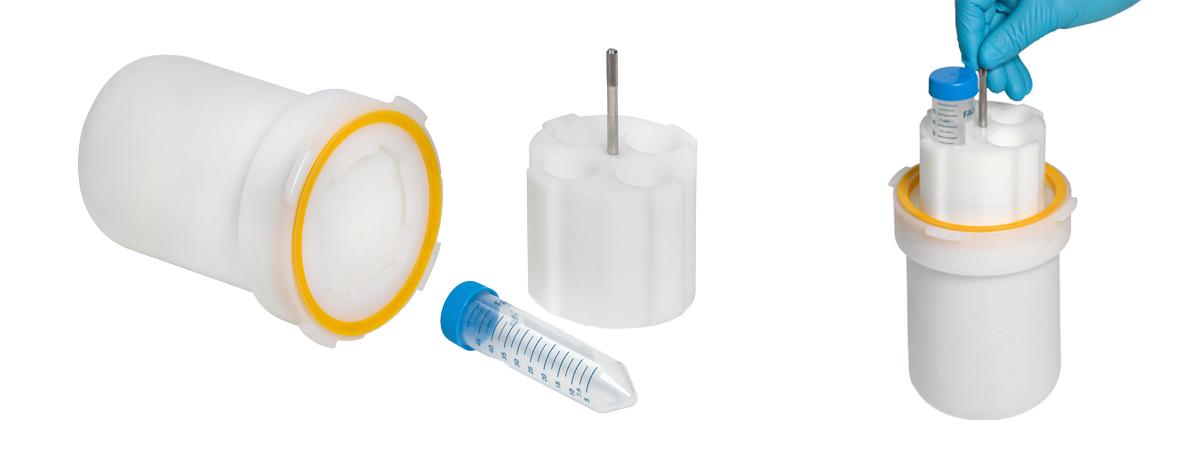

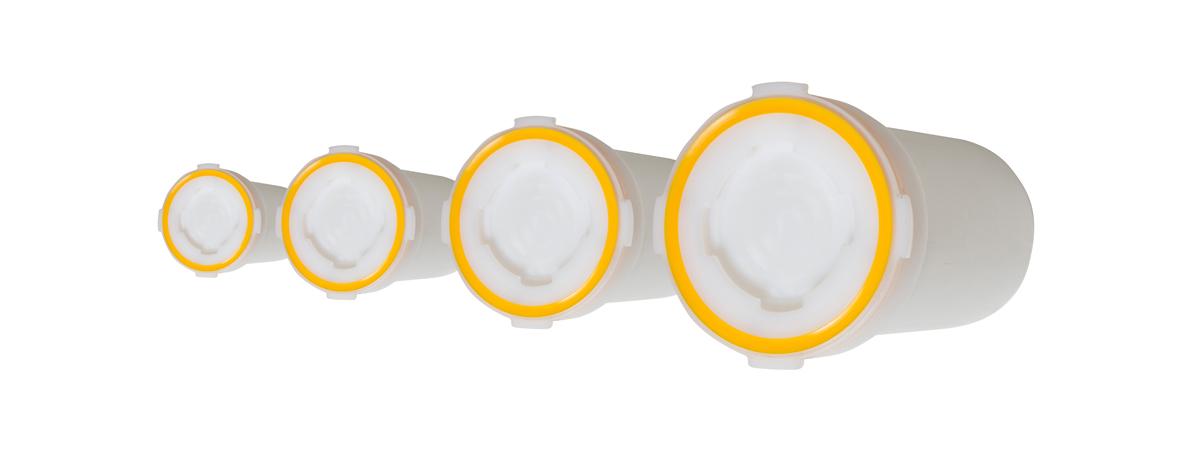

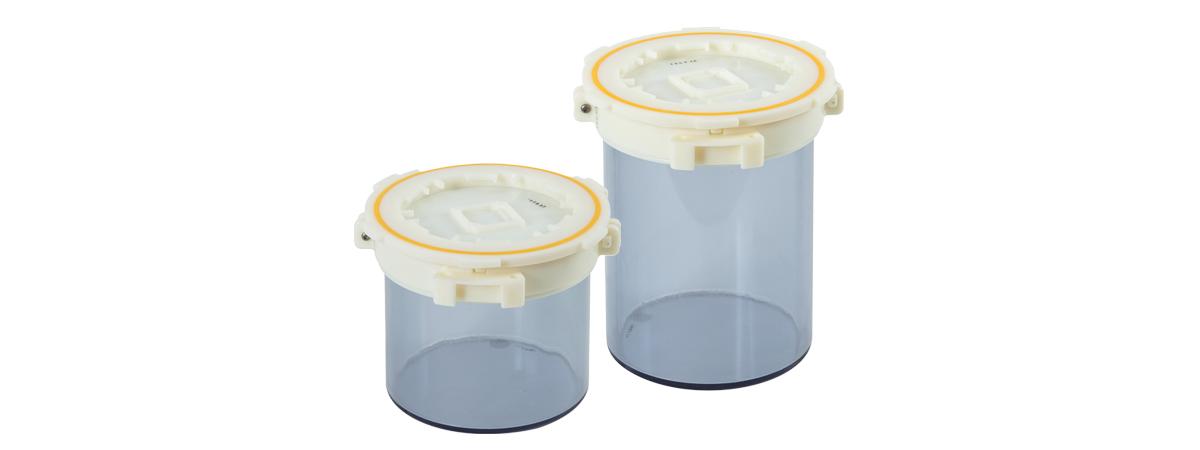

Container characteristics

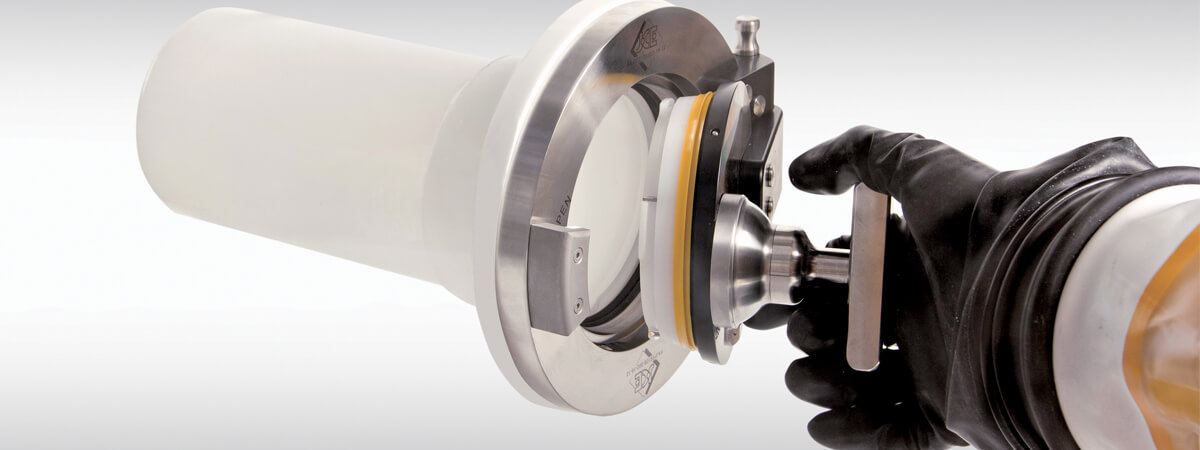

– Transfer Container CTP 105 200
– Material: HDPE
– Pass-through diameter 100 mm
– Silicone seal
– Leak tightness: as per ISO standard 10648-2
– Capacity 1.5 litres
– Permissible load 2kg

Principle

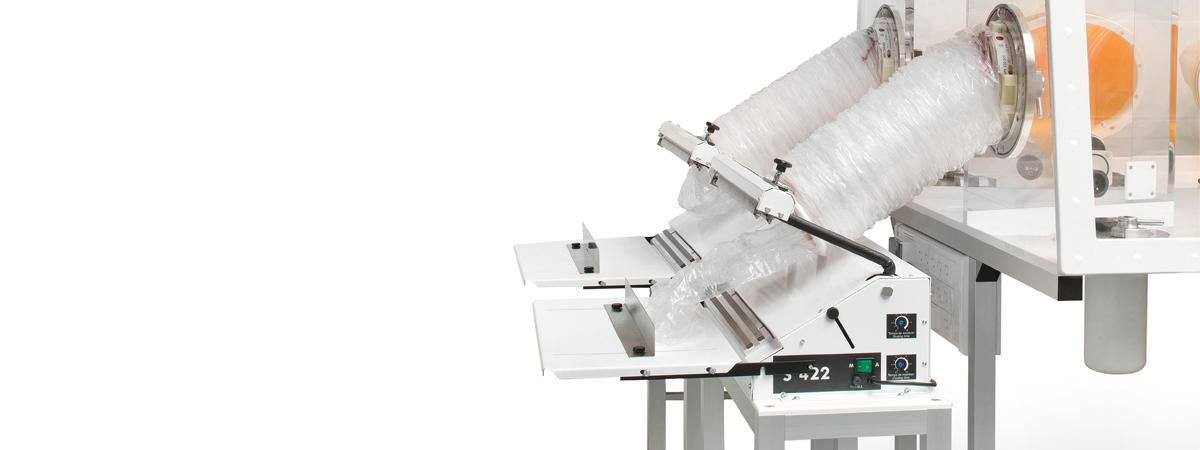

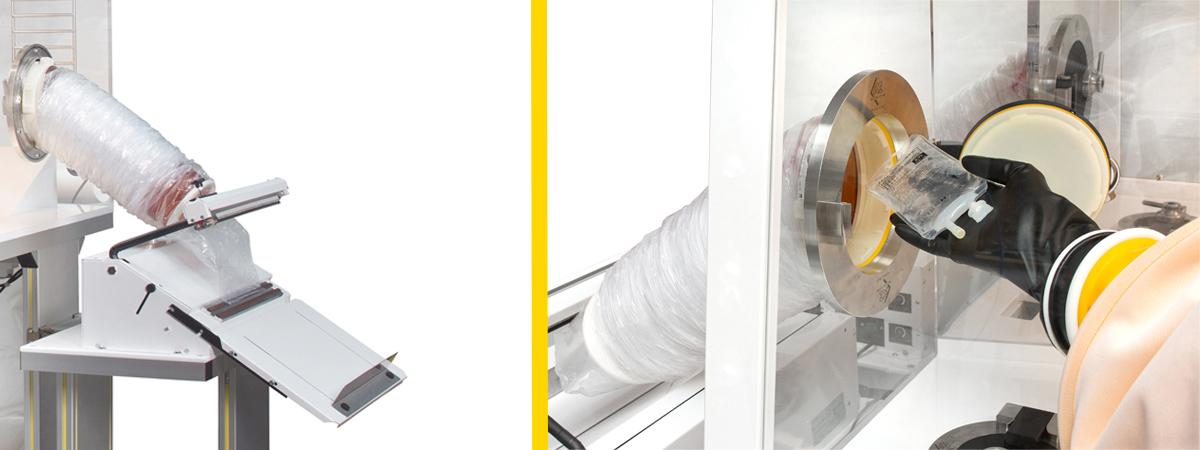

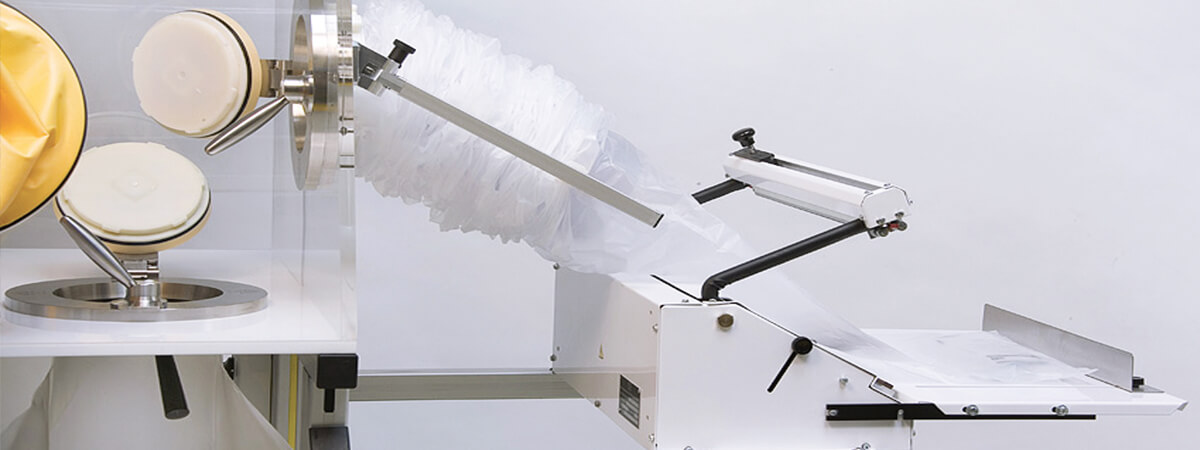

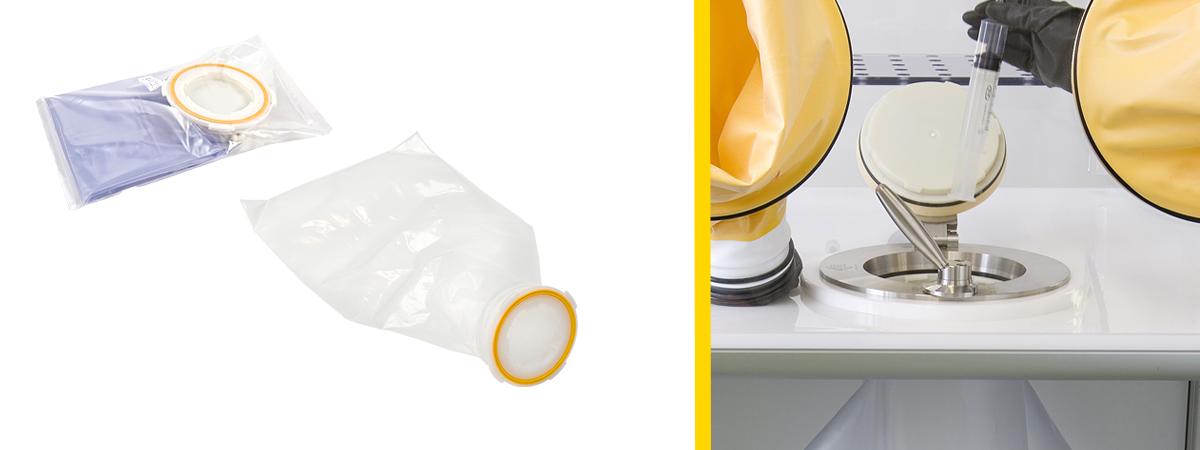

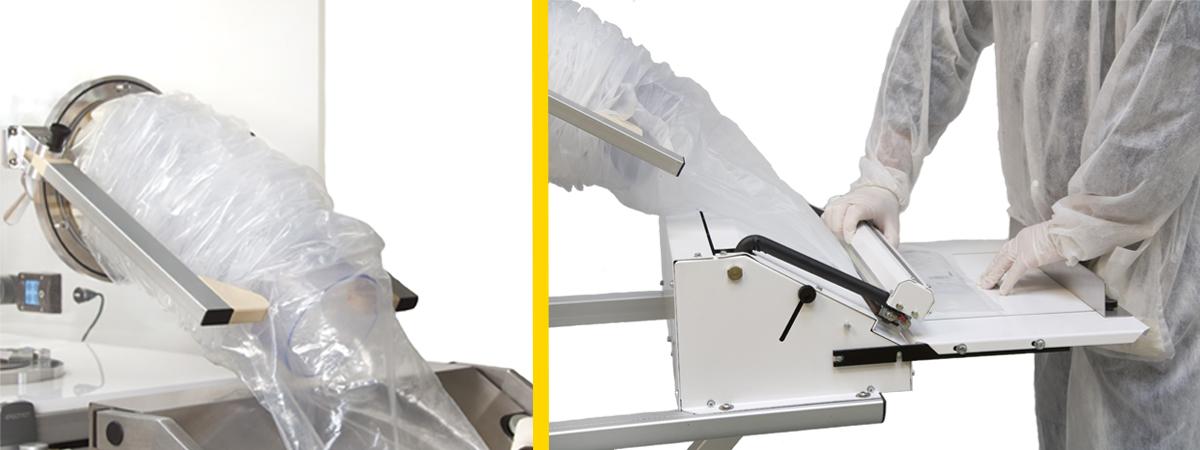

The GPS 150 005 ® Tubing system is located on the side wall of the isolator. With the MWS A 150® door, this system enables manufactured and controlled products to be evacuated and packaged completely safely.

Characteristics

– Packaging in PE wrapping L 500 mm
– Gamma sterilisation at 25 kGy
– Impulse welding
– Double seam 400 to ensure containment capacity 400 mm
– Magnetic locking of the sealing bar
